Product Summary
The K4S561632j-UC75 is a synchronous high data rate Dynamic RAM organized as 4 x 16,777,216 words by 4 bits / 4 x 8,388,608 words by 8bits / 4 x 4,194,304 words by 16bits, fabricated with SAMSUNGs high performance CMOS technology. The K4S561632j-UC75 design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
Parametrics
K4S561632j-UC75 absolute maximum ratings: (1)Voltage on any pin relative to VSS VIN, VOUT: -1.0 ~ 4.6 V; (2)Voltage on VDD supply relative to VSS VDD, VDDQ: -1.0 ~ 4.6 V; (3)Storage temperature TSTG: -55 ~ +150 ℃; (4)Power dissipation PD: 1 W; (5)Short circuit current IOS: 50 mA.
Features
K4S561632j-UC75 features: (1)JEDEC standard 3.3V power supply; (2)LVTTL compatible with multiplexed address; (3)Four banks operation; (4)MRS cycle with address key programs; (5)All inputs are sampled at the positive going edge of the system clock.; (6)Burst read single-bit write operation; (7)DQM (x4,x8)& L(U)DQM (x16)for masking; (8)Auto & self refresh; (9)64ms refresh period (8K Cycle); (10)Lead-Free & Halogen-Free Package; (11)RoHS compliant.

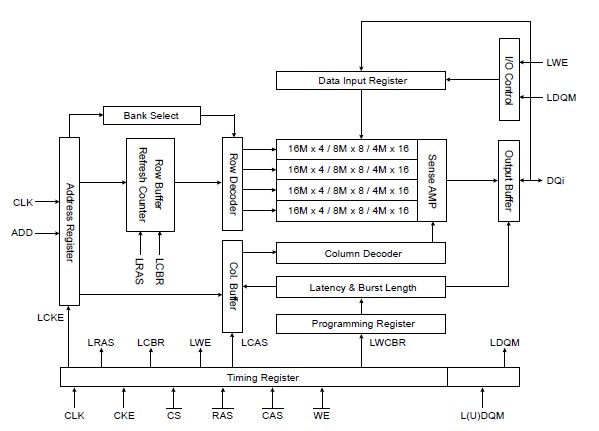

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 K4S561632J-UC75 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
K4S561632J-UC75 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S561633C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S561632H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S561632E-UC75 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S561632E-UC60 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S561632E-TC75 |
Other |
|
Data Sheet |
Negotiable |
|
||||
