Product Summary
The AT29C040A-90TU is a 5-volt only in-system Flash Programmable and Erasable Read Only Memory (PEROM). Its 4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured with Atmels advanced nonvolatile CMOS EEPROM technology, the AT29C040A-90TU offers access times up to 90 ns, and a low 220 mW power dissipation.The device endurance is such that any sector can typically be written to in excess of 10,000 times. The programming algorithm is compatible with other devices in Atmels 5-volt only Flash family. To allow for simple in-system reprogrammability, the AT29C040A does not require high input voltages for programming. Five-volt-only commands determine the opera-tion of the AT29C040A-90TU. Reading data out of the device is similar to reading from an EPROM. Reprogramming the AT29C040A-90TU is performed on a sector basis; 256 bytes of data are loaded into the device and then simultaneously programmed.
Parametrics
AT29C040A-90TU absolute maximum ratings: (1)Temperature Under Bias: -55° C to +125℃; (2)Storage Temperature : -65° C to +150℃; (3)All Input Voltages (including NC Pins)with Respect to Ground : -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground : -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground : -0.6V to +13.5V.
Features
AT29C040A-90TU features: (1)Fast Read Access Time - 90 ns; (2)5-volt Only Reprogramming; (3)Sector Program Operation - Single Cycle Reprogram (Erase and Program)- 2048 Sectors (256 Bytes/Sector)- Internal Address and Data Latches for 256 Bytes; (4)Internal Program Control and Timer; (5)Hardware and Software Data Protection; (6)Two 16K Bytes Boot Blocks with Lockout; (7)Fast Sector Program Cycle Time - 10 ms; (8)DATA Polling for End of Program Detection; (9)Low Power Dissipation - 40 mA Active Current - 100 μA CMOS Standby Current; (10)Typical Endurance > 10,000 Cycles; (11)Single 5V ± 10% Supply Green (Pb/Halide-free)Packaging Option .

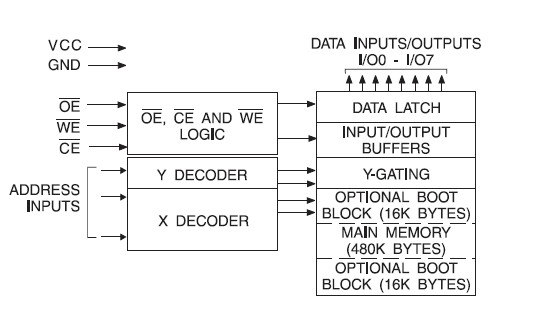

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT29C040A-90TU |
Atmel |
Flash 512K x 8 90 ns 4.5V-5.5V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
AT29BV010A |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
AT29BV010A-12JC |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS COM TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT29BV010A-12JI |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT29BV010A-12JU |
Atmel |
Flash 1M(128Kx8) 2.7V - 120NS IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT29BV010A-12TC |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS COM TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT29BV010A-12TI |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS IND TEMP |
Data Sheet |
Negotiable |
|
||||
